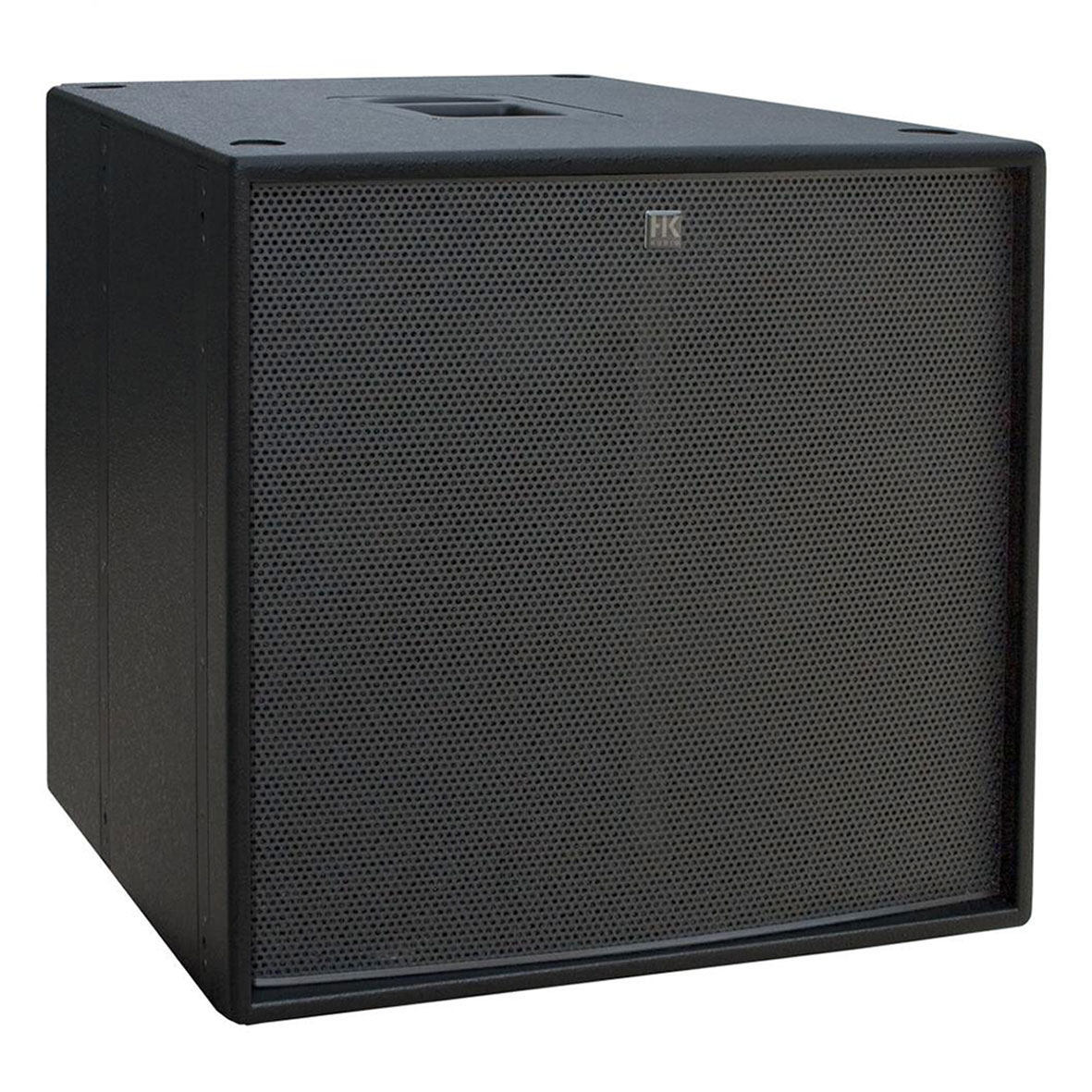

Loa HK siêu trầm treo và đặt sàn CAD 115 Sub

Thương hiệu: HK AUDIO Loại: Karaoke

Liên hệ

Công suất: 600 W RMS
Trở kháng: 8 ohms
Maximum SPL, @ 10% THD: 122 dB@10% THD Full-Space (60 Hz–150 Hz) 128 dB@10% THD Half-Space (60 Hz–150 Hz)
Độ nhạy 1W/1m: 96 dB (50 Hz- 200 Hz) Full space 102 dB (50 Hz- 200 Hz) Half space
Tần số đáp ứng: (+/- 3 dB) 47 Hz- 150 Hz
Cấu tạo loa: 1x 15“ neodymium woofer
Kết nối: 2 x Speakon NL 4
Kích thước (W x H x D): 58.3 cm x 57.3 cm x 64 cm
Trọng lượng : 38 kg

Thông tin chi tiết

Mô tả

Passive, flyable subwoofer for installations, 1200 W (program), 8 ohms impedance, 1 x 15″ woofer, 124 dB max. SPL (10 % THD), 42 Hz – 150 Hz (-10 dB), 2x Speakon NL4 (other connectors optional)

Professional, flyable subwoofer with 15″ neodymium woofer in bass reflex cabinet. Weather-resistant 18 mm birch plywood with two-component coating, standard in black or white (RAL colours optional). Powder-coated steel grille with foam backing, two built-in MultiGrips.

Laterally recessed flying rails allow mechanical compatibility with the CADIS system. Attachment to CADIS rigging/stacking frame and/or mounting of CADIS connector frame for combination with CAD 208.

Also serves as a groundstack base for CADIS systems.

Thông số kỹ thuật

Product name	CAD 115 Sub
Power-handling, nominal (RMS)	600 W
Power-handling, program	1200 W
Power-handling, peak	2400 W
Sensitivity 1 W/1 m	96 dB
Frequency response +/- 3 dB (processed)	47 Hz - 150 Hz
Frequency response -10 dB (processed)	42 Hz - 150 Hz
Max. SPL @ 10 % THD/1 m (EN 60268-21, full space)	124 dB
Directivity (horizontal x vertical)	omnidirectional
Electrical impedance	8 ohms
Low/mid transducer	1 x 15" with neodymium magnet and 3" voice coil
High frequency driver	not applicable
Crossover/cut-off frequency	requires external DSP filtering
DSP filters	Filters for Lab.gruppen IPD, Lake und Powersoft Armonía+
Connections	2 x Speakon NL4 (standard), connection terminal outside (optional), PG gland with internal connection terminal (optional)
Mounting points	integrated 4-point-flyware
Cabinet material	Birch plywood
Front grille	powder coated steel grille with foam backing
Finish	Two-component coating, black and white as standard, all RAL colors possible
Carrying handles	2 x MultiGrip
Protection class (IP code EN 60529)	IP 44
Optional accessories	Rigging/stacking frame, connector frame, sub connector set
Dimensions (W x H x D)	573 x 583 x 640 mm
Weight	38.0 kg
